Fiber Cleavers

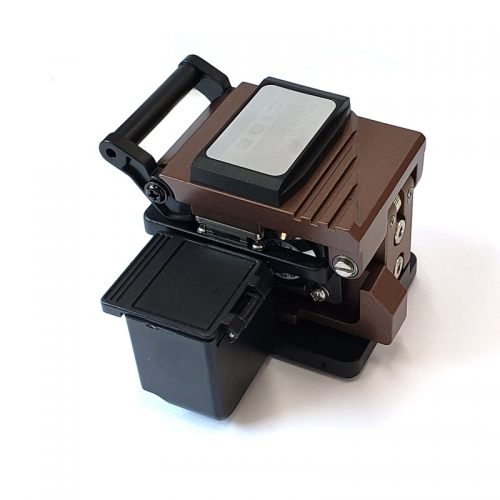

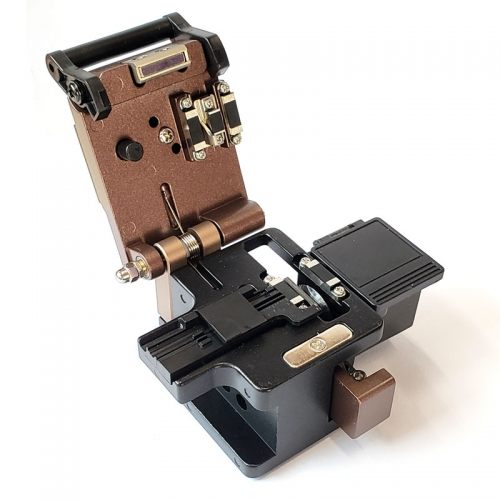

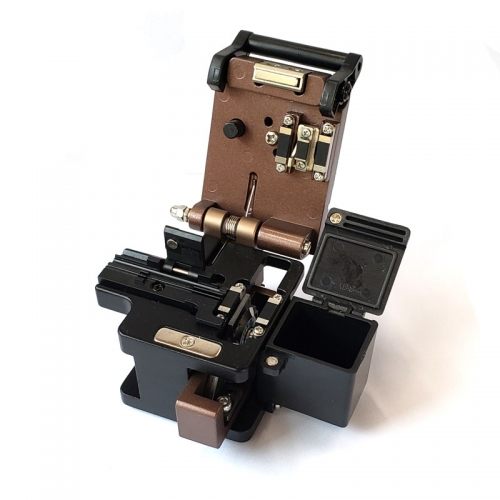

C108 High Precision Cleaver
High precision cleaver with a 24-position rotatable blade and approximately 48,000 cleaves.
- Provides approximately 48,000 cleaves
- Compact body and light weight
- 24-position rotatable and replicable blade
- For 250 um coated or 900 um buffer fiber
Specifications
Technical data for the C108 High Precision Cleaver. Need a full datasheet or help comparing models? Contact our sales team.
| Model | C108 |
|---|---|
| Applicable fibers | Singlemode or Multimode |
| Fiber diameter | 125 um |
| Coating diameter | 250-900 um |
| Typical cleave angle | 0.5 degrees |
| Cleave length | 5-16 mm |
| Blade life | 48,000 cleaves (2,000 per blade position) |
| Dimensions | 62 x 60 x 60 mm |
| Weight | About 380 g |
