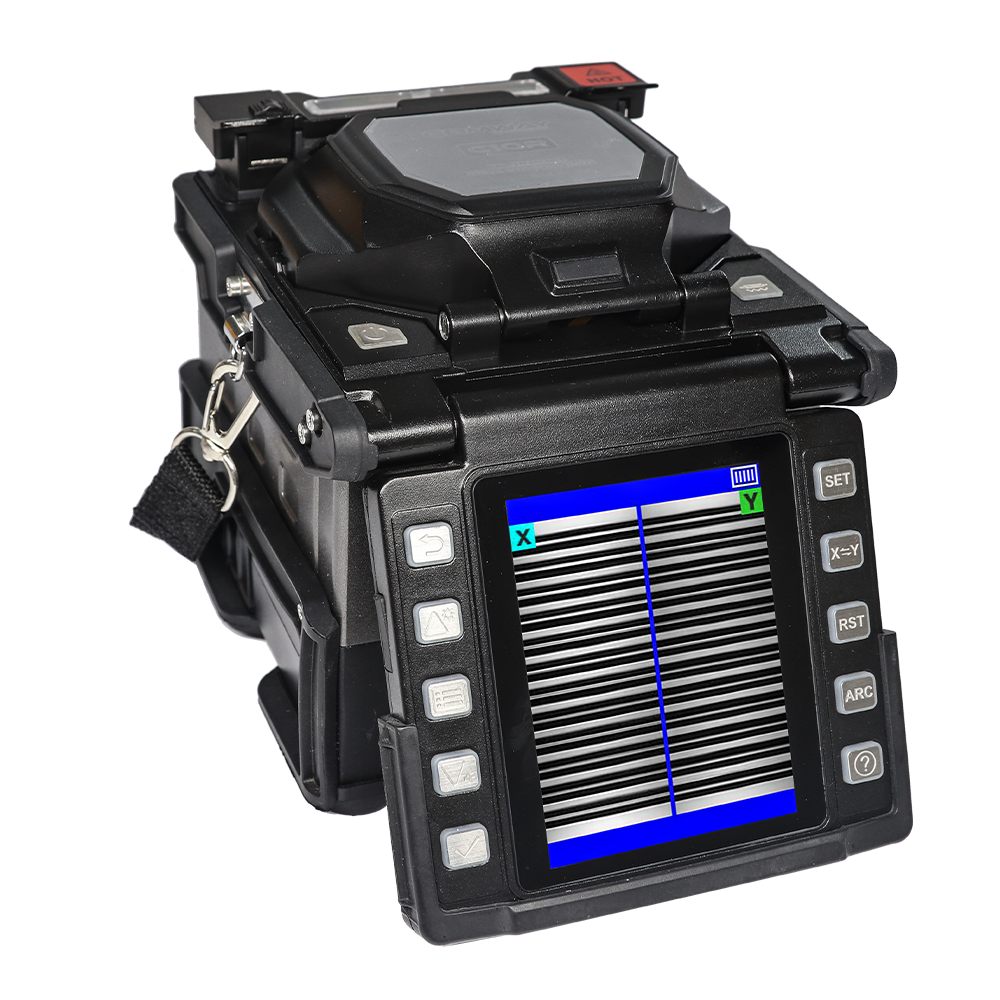

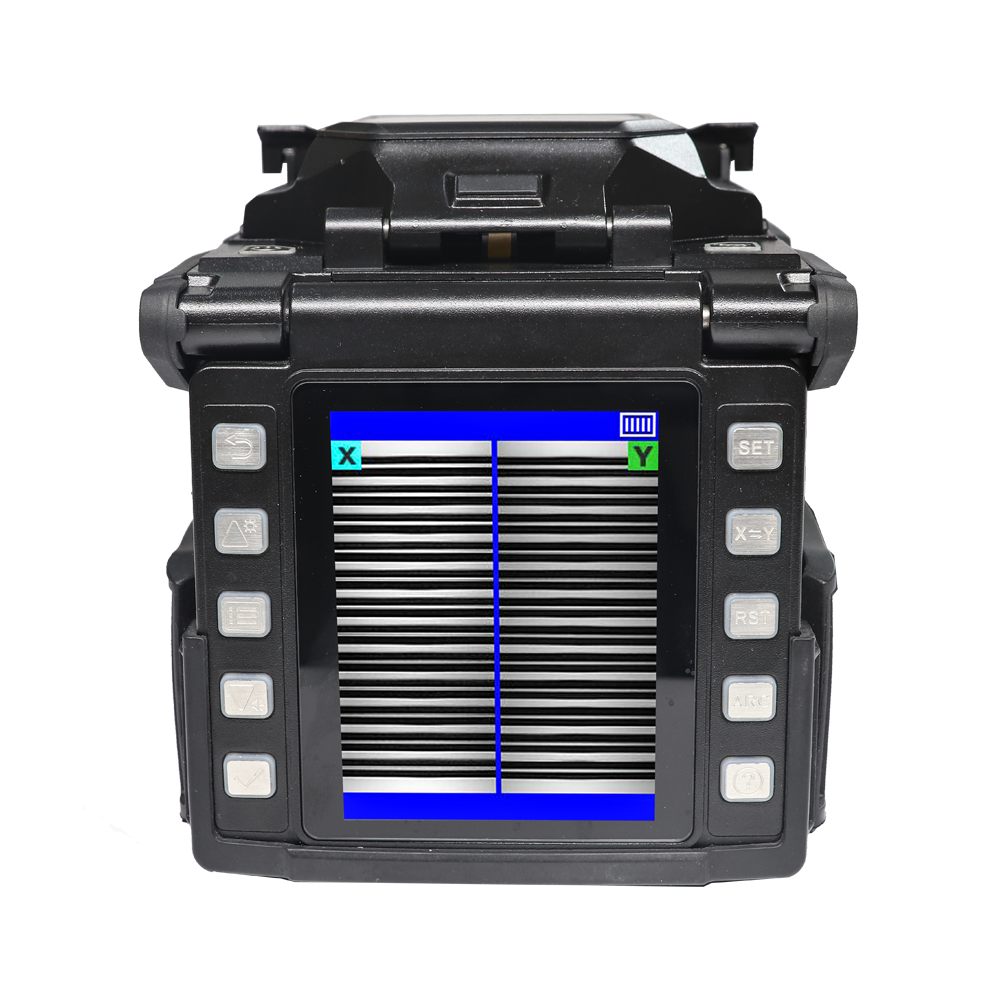

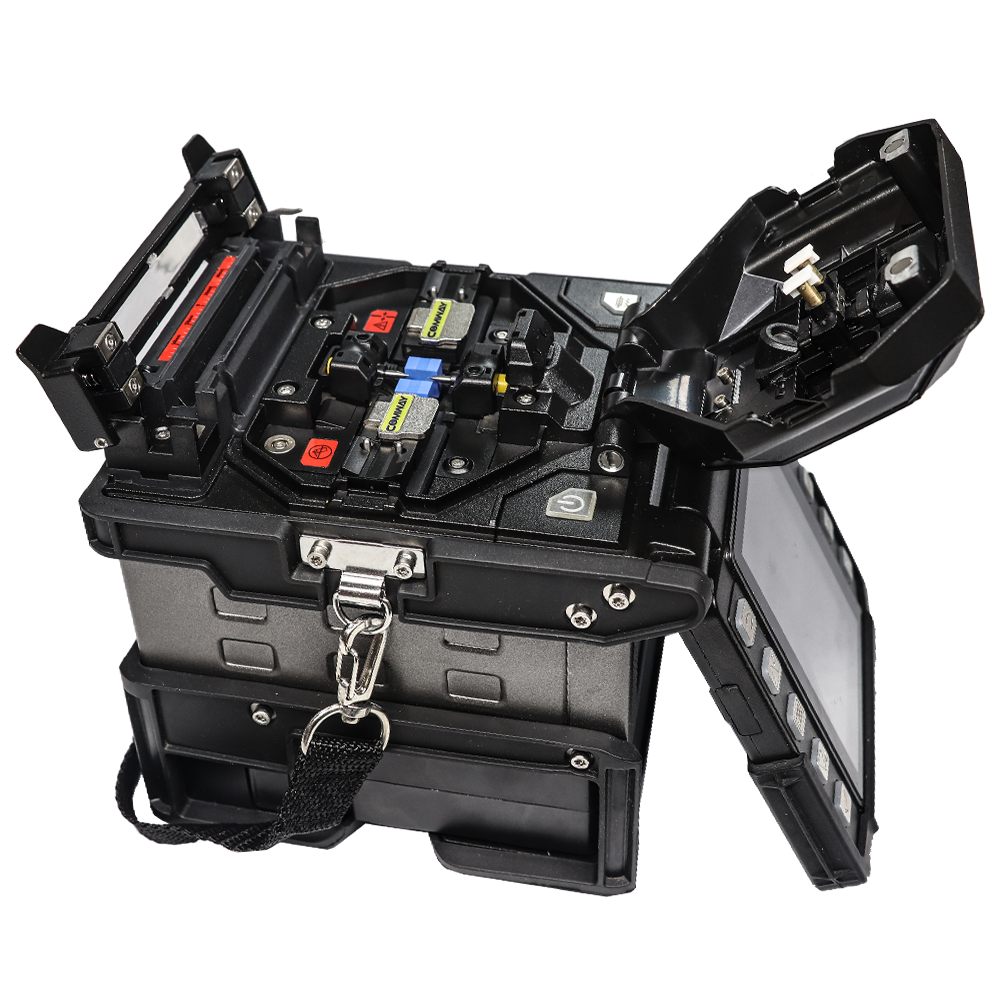

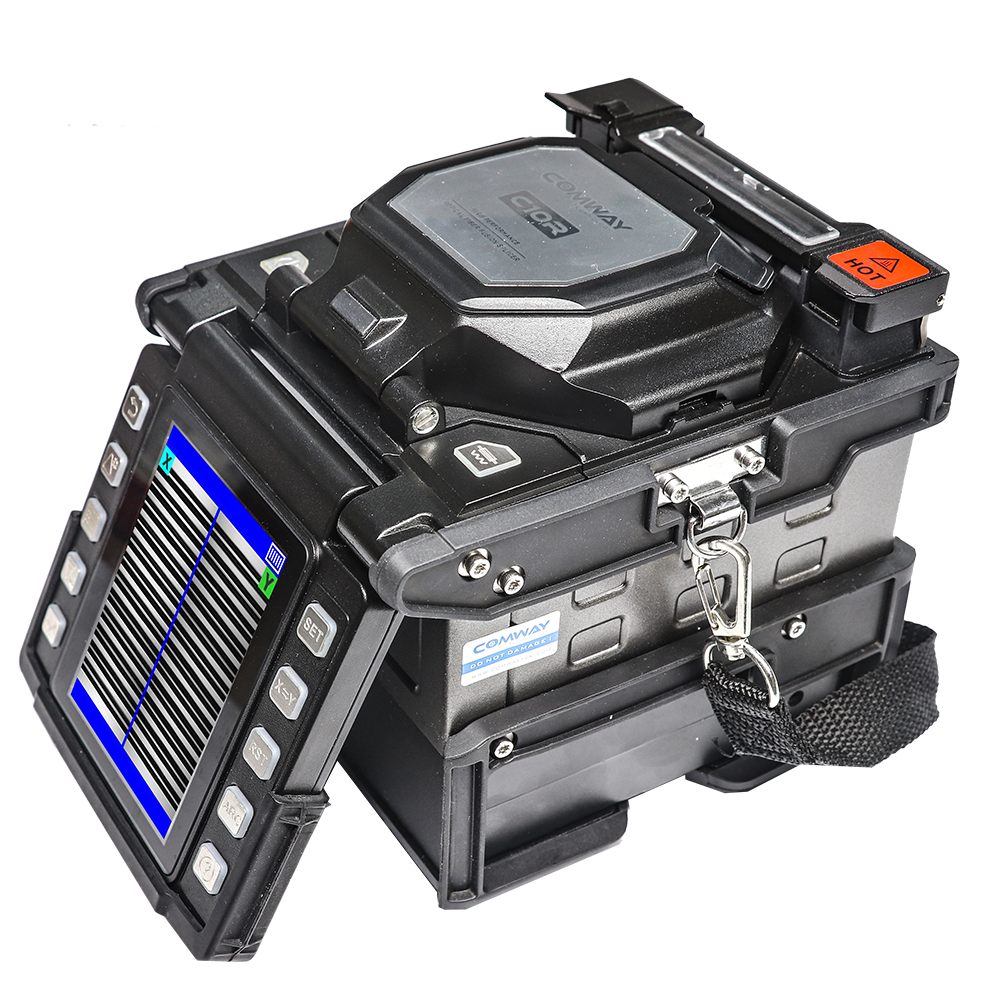

Ribbon Fusion Splicer C10R
Mass fusion splicer for ribbon fiber, paired with the COMWAY ribbon fiber stripper for high-count fiber projects.
- Patented ribbon fiber fusion splicer
- Up to 16-core ribbon splicing
- Ultra-precision V-groove
- 13 sec. splicing time
- 18 sec. heating time
- Time-delay password anti-theft
- GPS location system (option)
Specifications
Technical data for the Ribbon Fusion Splicer C10R. Need a full datasheet or help comparing models? Contact our sales team.
| Size & Weight | D156×W135×H148(mm), 1.7kg (2.5kg with battery) |
|---|---|
| Applicable fibers | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/DS(ITU-T G.655), BI(ITU-T G.657) |
| Fiber count | Up to 16 core ribbon fiber |
| Cladding dia. | Single: 125μm / 160μm to 3mm by fiber holder system |
| Sheath dia. | Ribbon: 125μm / ribbon fiber thickness 0.25 to 0.4mm |
| Cleave length | 8mm to 5.5mm |
| Splice mode | Total 200 splice modes |
| Typical splice time | 13sec with SM FAST, 16sec with SM AUTO |
| Heating mode | 30 heating modes |
| Typical tube heating time | 18sec SM FAST |
| Applicable sleeve | 5-60mm sleeve |
| Splice image capture | Max. 800 |
| Splice result storage | Max. 20000 |
| Typical splice loss | SM: 0.05dB, MM: 0.03dB, DS: 0.08dB, NZ/DS: 0.08dB, BI: 0.05dB |
| Return loss | >60dB |
| Fiber view | Two axis CMOS camera with 4.3 inch high-light color LCD |
| Fiber magnification | X/Y: 132/100X magnification, or both X and Y simultaneously |
| Operating condition | Altitude 0-3800m above sea level, temperature -10~+50°C, wind 15m/sec, humidity 0~95%RH, water-proof IPX4, dust-proof IP5X |
| Tension test | 1.96~2.25N |
| Electrode life | 2000 splices |
| Power supply | AC100-240V 50/60Hz |
| Battery parameters | 8400mAh high capacity battery, more than 240 times splicing and heating |
| Terminal | USB 2.0 connector for PC communication |
| Other features | Time-delay password against theft, ID electrode against fake |
| Option | GPS location system |
