MAX-600-M1-S last-mile OTDR

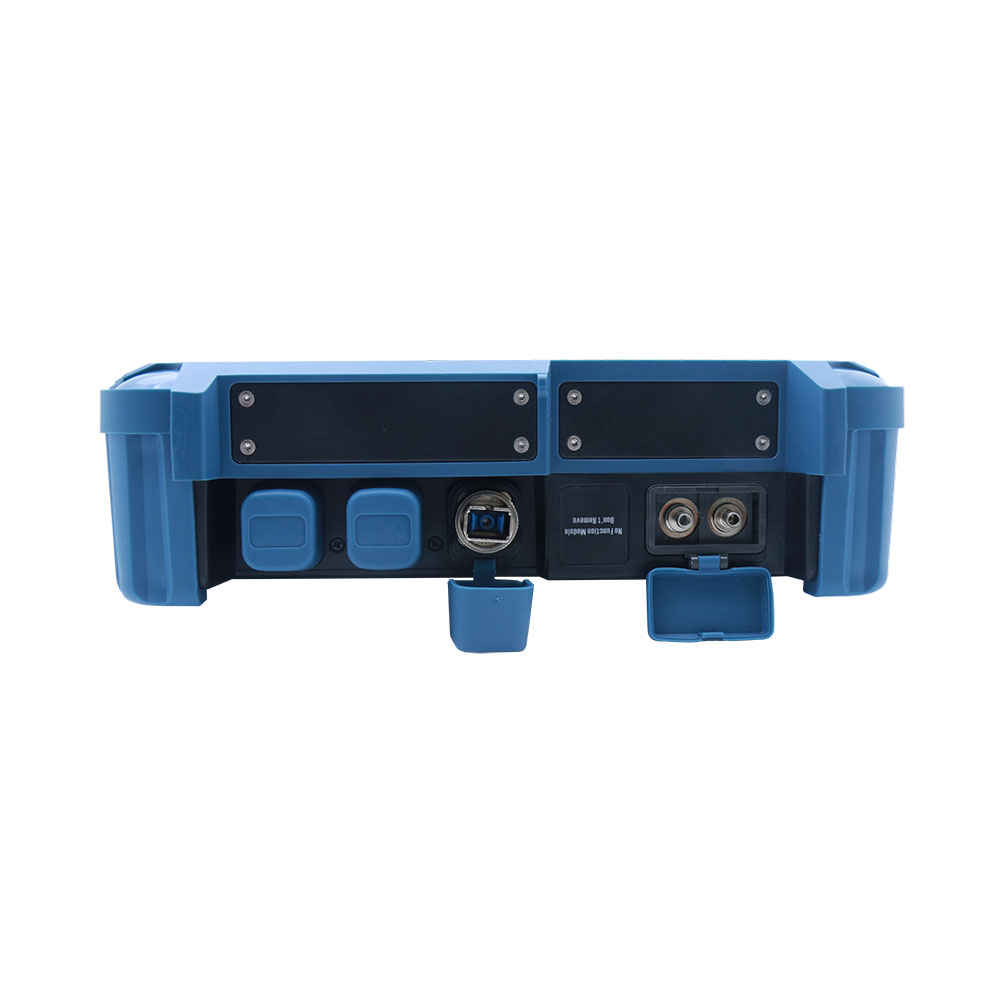

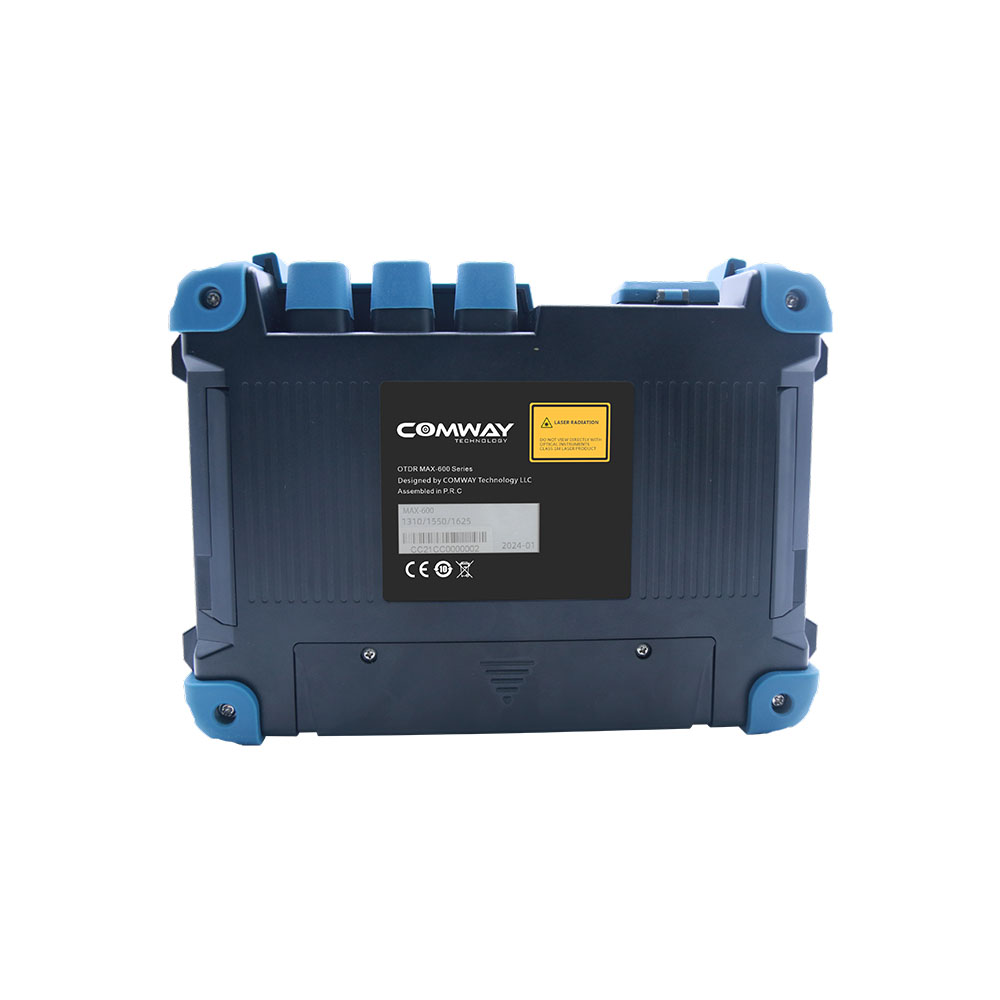

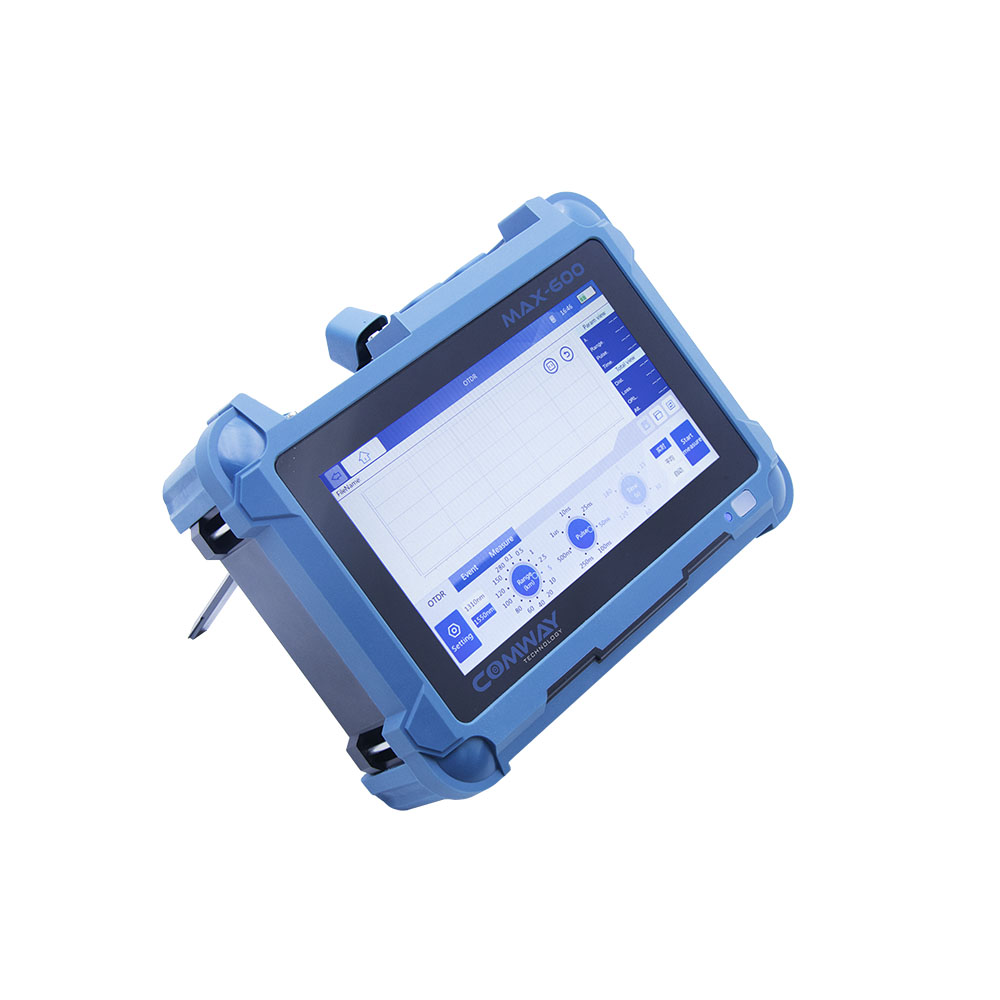

The MAX-600-M1-S is a handheld optical time-domain reflectometer for fiber link testing, event location and network troubleshooting. It measures fiber length, loss and event positions and displays them on a clear event map for fast troubleshooting. Its 1310/1550nm ports deliver 30/28dB dynamic range for everyday link testing. A 7-inch outdoor-enhanced touchscreen, built-in power meter and VFL, iOLA Map Link and lightweight 1.0kg body make it a versatile field tool for FTTx, PON and long-haul applications.
- ≤0.8m extra-short event dead zone
- 30/28dB dynamic range
- Memory storage >80,000 OTDR traces
- With power meter & VFL, Map Link (iOLA)
- 7.0-inch outdoor-enhanced touch screen
- Anti-theft available
- For FTTx, PON and long-haul link testing
Specifications
Technical data for the MAX-600-M1-S last-mile OTDR. Need a full datasheet or help comparing models? Contact our sales team.
| Wavelength | 1310/1550nm |
|---|---|
| Dynamic Range | 30/28dB |
| Event Dead Zone | ≤0.8m |
| Attenuation Dead Zone | 5m |
| Wavelength Accuracy | ±20nm |
| Pulse Width | 5ns~20μs, 12 steps |
| Distance Range | 100m~280km, 13 ranges |
| Distance Accuracy | ±(0.8m+0.005%×distance+sampling resolution) |
| Linearity | ≤0.03dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Measurement Time | 5s~5mins, real-time |
| Real-time Refresh | 4Hz |
| Power Meter | -50~+26dBm, 850/1300/1310/1490/1550/1625nm, FC or SC adapter |
| VFL | 650nm±10nm, 10mW |
| Display | 7-inch (178mm) outdoor-enhanced touchscreen, 800×480 TFT |
| Interfaces | One USB 2.0 port; RJ-45×1 LAN 10/100 Mbit/s; Micro SD×1 |
| Storage | >10000 results (SOR or PDF) |
| Battery | 7.4V, 4600mAh lithium battery pack |
| Power Consumption | <3W |
| Power Supply | AC/DC adapter, AC input 100-240V, 50-60Hz, DC output 12V/1.5A |
| Operating Temperature | -10℃~+50℃ |
| Dimensions | 215×152×64mm |
| Weight | 1.0kg (including battery) |
