Fusion Splicers

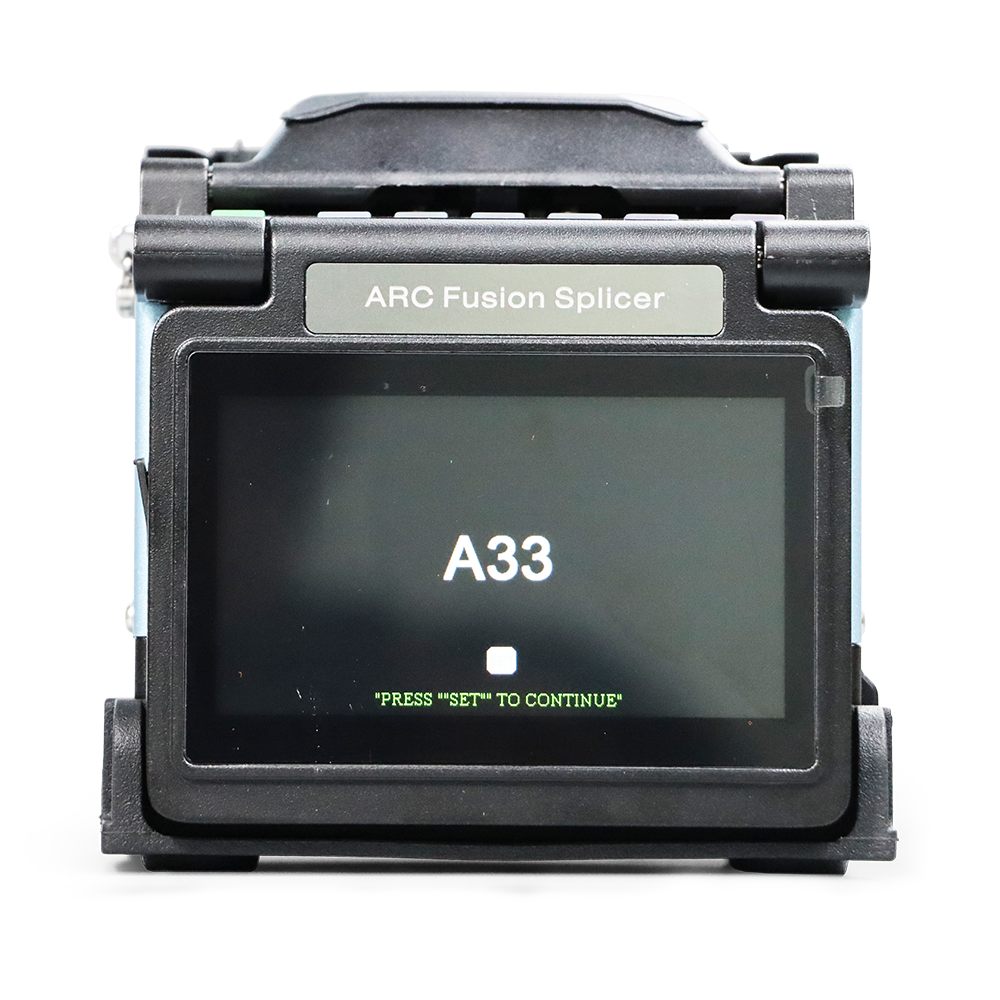

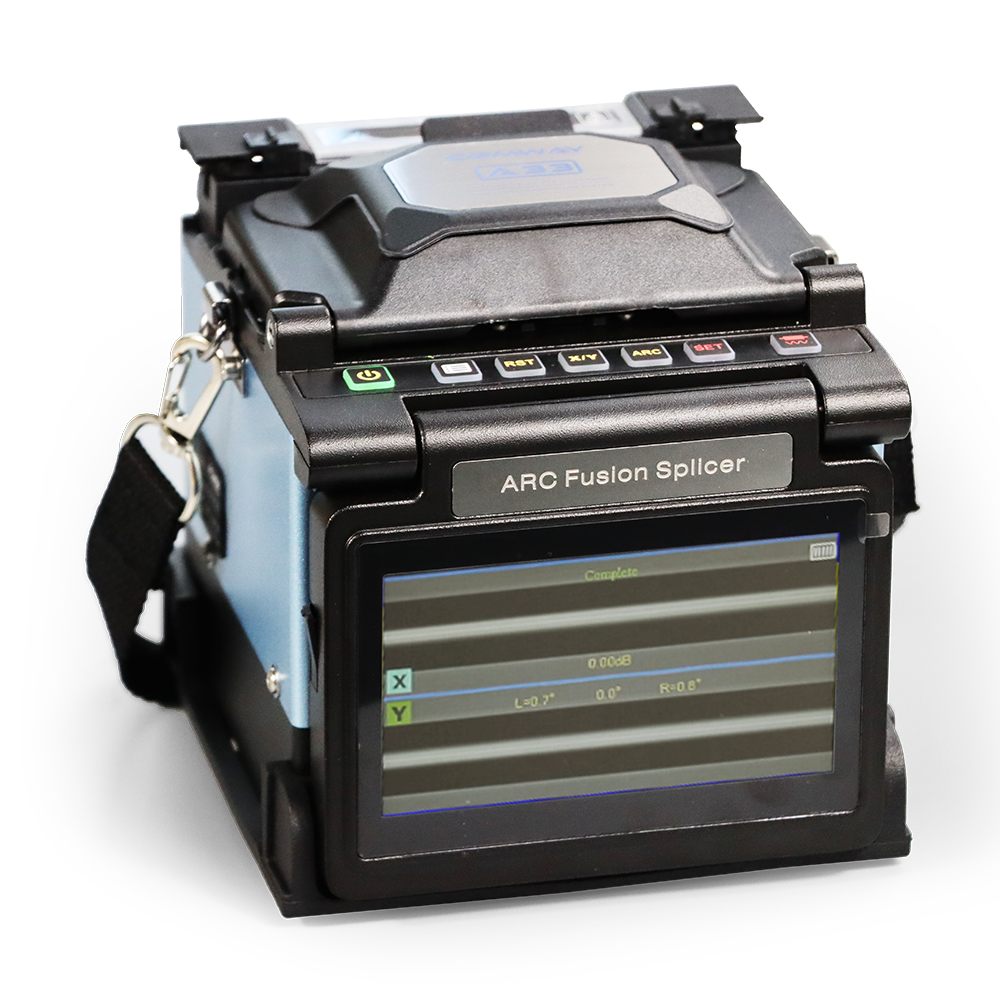

Fusion Splicer A33
2 in 1 fiber endface melter & fusion splicer with integrated GPU, 4.3 inch touch screen, 5 sec. splicing and 15 sec. heating.
- 2 in 1 fiber endface melter & fusion splicer
- Integrated GPU - more efficiency, low power consumption

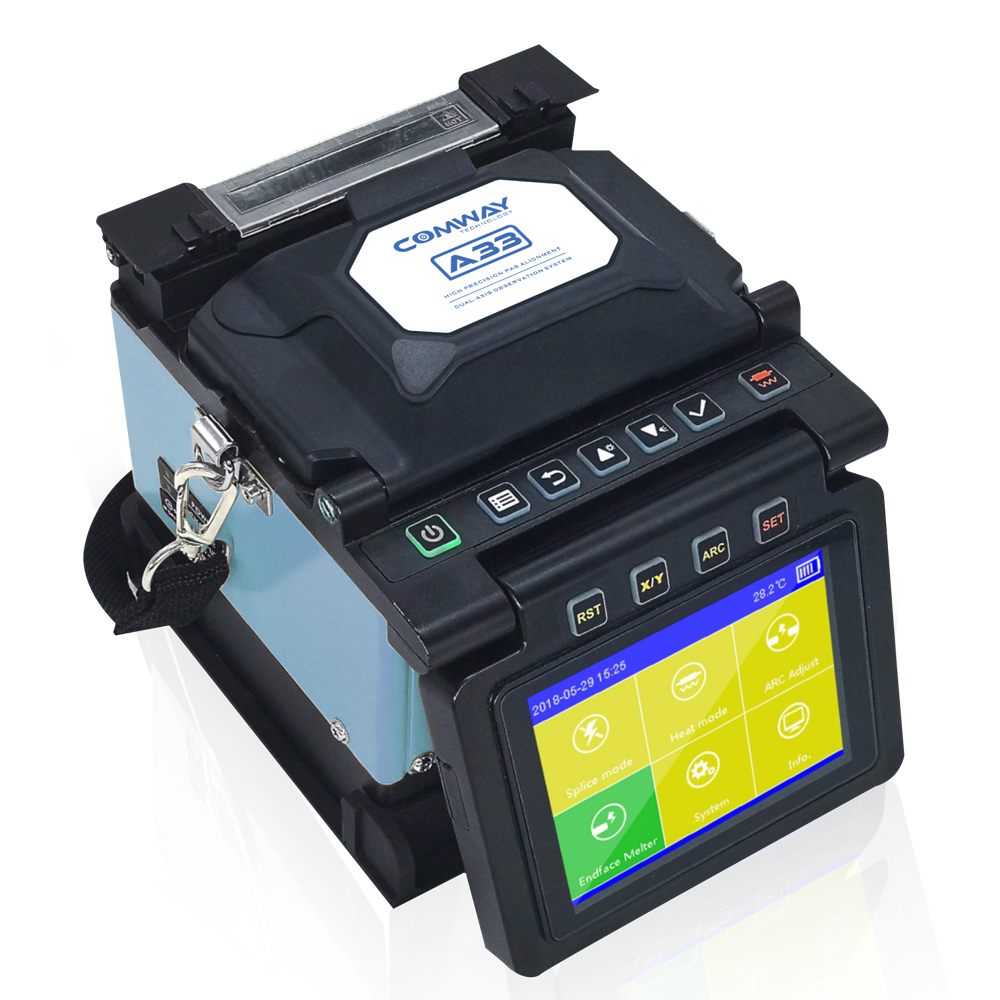

- 4.3 inch high-light color touch screen
- 5 sec. splicing [SM Fast], 15 sec. heating
- Remote locker anti-theft
- ID electrodes rated for 5000 ARC discharges

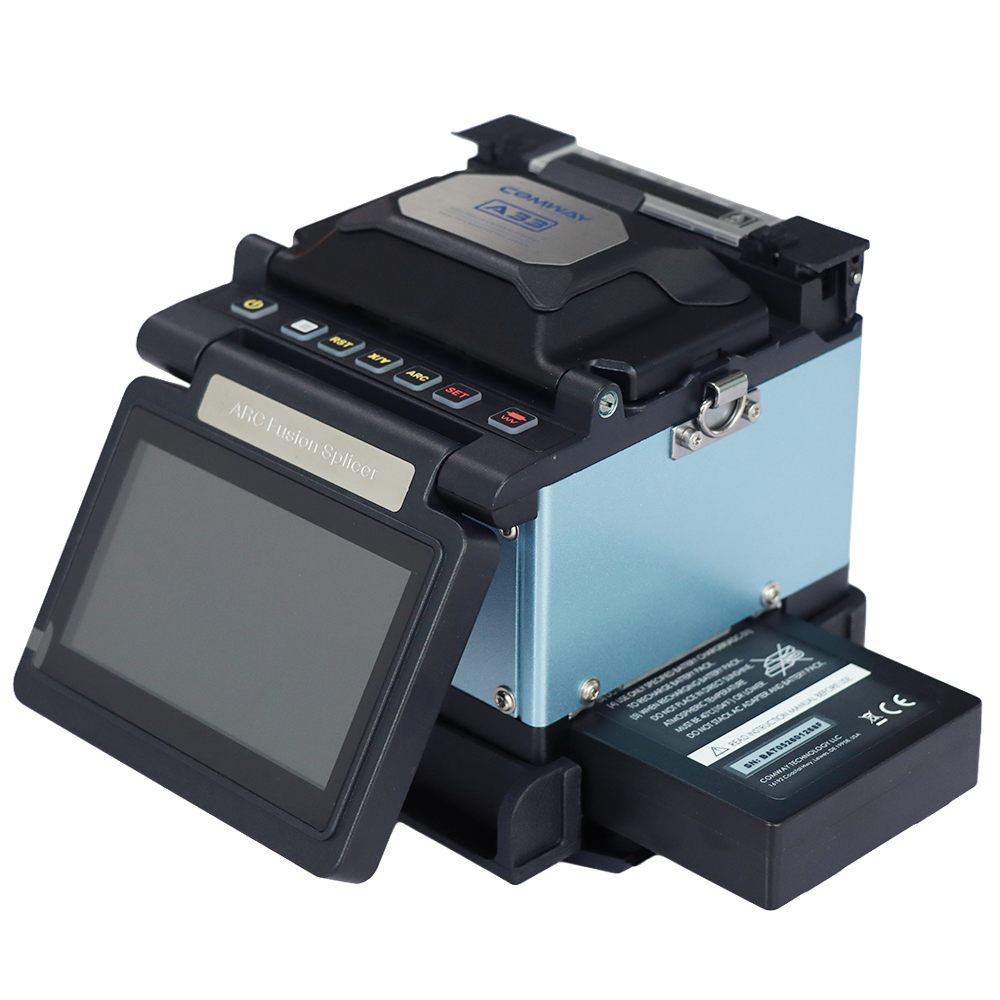

- Standard package: A33 main unit, cleaver C108, stripper CFS-2, drop cable stripper, battery BAT-05, AC adapter ADC-05, extra electrodes, cooling tray, carrying case and more
Specifications
Technical data for the Fusion Splicer A33. Need a full datasheet or help comparing models? Contact our sales team.
| Model | A33 ARC Fusion Splicer |
|---|---|
| Type | 2 in 1 Fiber Endface Melter & Fusion Splicer |
| Size & Weight | D136×W141×H136(mm), 1.5kg (1.8kg with battery) |
| Fiber alignment | High Precision PAS Alignment |
| Fiber type | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
| Splice mode | Single fiber |
| Fiber diameter | Cladding diameter 80~150μm, coating diameter 100~3000μm |
| Cleave length | 250μm cladding diameter 8~16mm, over 250μm cladding diameter 16mm |
| Splicing programs | Max. 100 |
| Splicing time | 5 sec. [SM Fast] program, 15 sec. [SM G.652] program |
| Heating programs | Max. 30 |
| Heating time | Typical 15sec. (Adjustable) |
| Splice protector | 10~60mm |
| Splice image capture | Max. 300, Automatic cycle storage |
| Splice data storage | Max. 20000 |
| Splice loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
| Return loss | > 60dB |
| Loss estimation | Provided |
| Operation condition | Altitude 0~5000m, Humidity 0~95%, Temperature -10~+50°C, Wind velocity up to 15m/s |
| Storage condition | Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C) |
| Tension | 2N |
| Fiber view | 4.3 inch high-light color touch screen |
| Fiber magnification | 300x for X or Y single axis view, 500x for both X&Y dual axis view (zoom up) |
| Port | High speed USB |
| Electrodes life | 5000 ARC discharges |
| Power supply | AC100~240V, 50/60Hz |

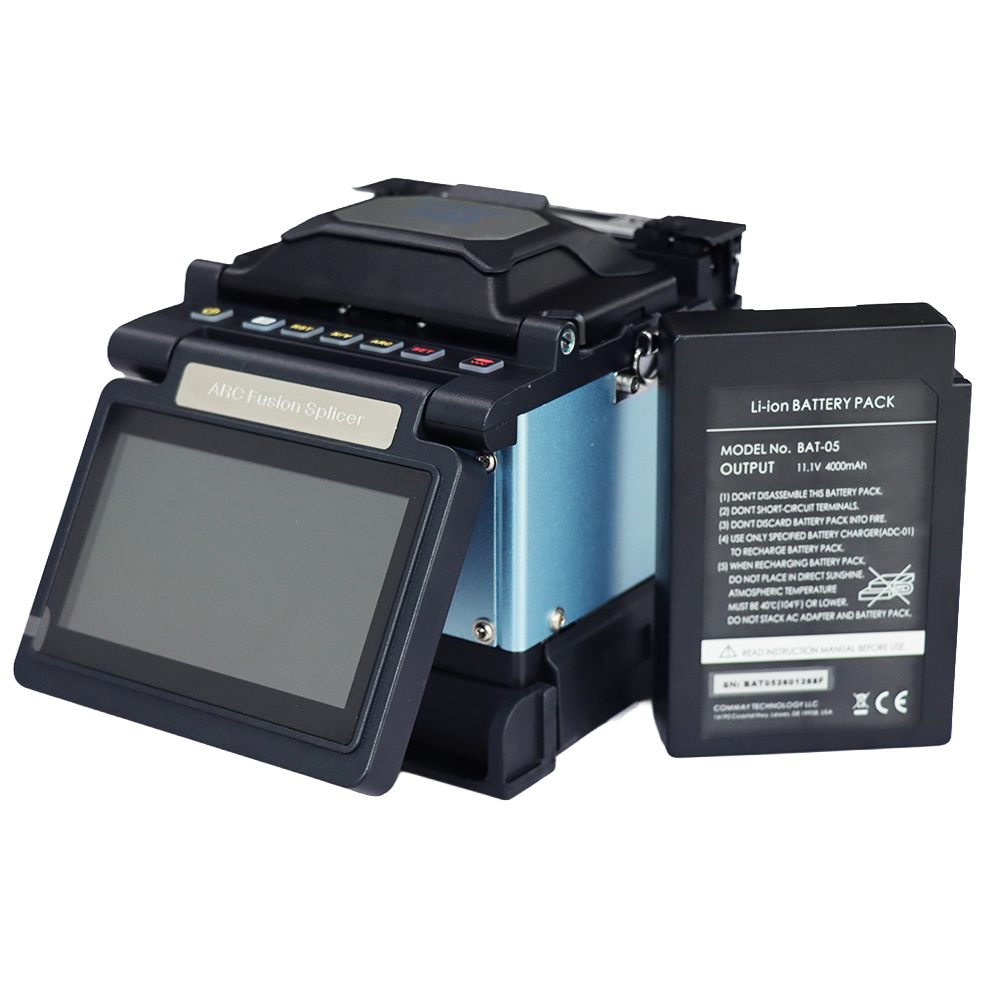

| Battery parameters | 4000mAh High capacity battery, more than 240 times splicing and heating |
| Platform | Integrated GPU (Innovation Patent) |
| Anti-theft | Remote locker |
