Fusion Splicer C10S V2

The C10S V2 is the newest Version of the COMWAY C10S platform. It combines six-motor core alignment with a fast, stable splice cycle and a rugged housing designed for daily field work. It is the flagship choice for FTTH deployment teams and backbone construction crews alike.

2 in 1 fiber endface melter & fusion splicer
Innovation patent with integrated GPU
6 motors core alignment
Supports G.654 fiber for 5G networks
750x single axis view
5 sec. splicing, 8 sec. heating
Remote locker anti-theft

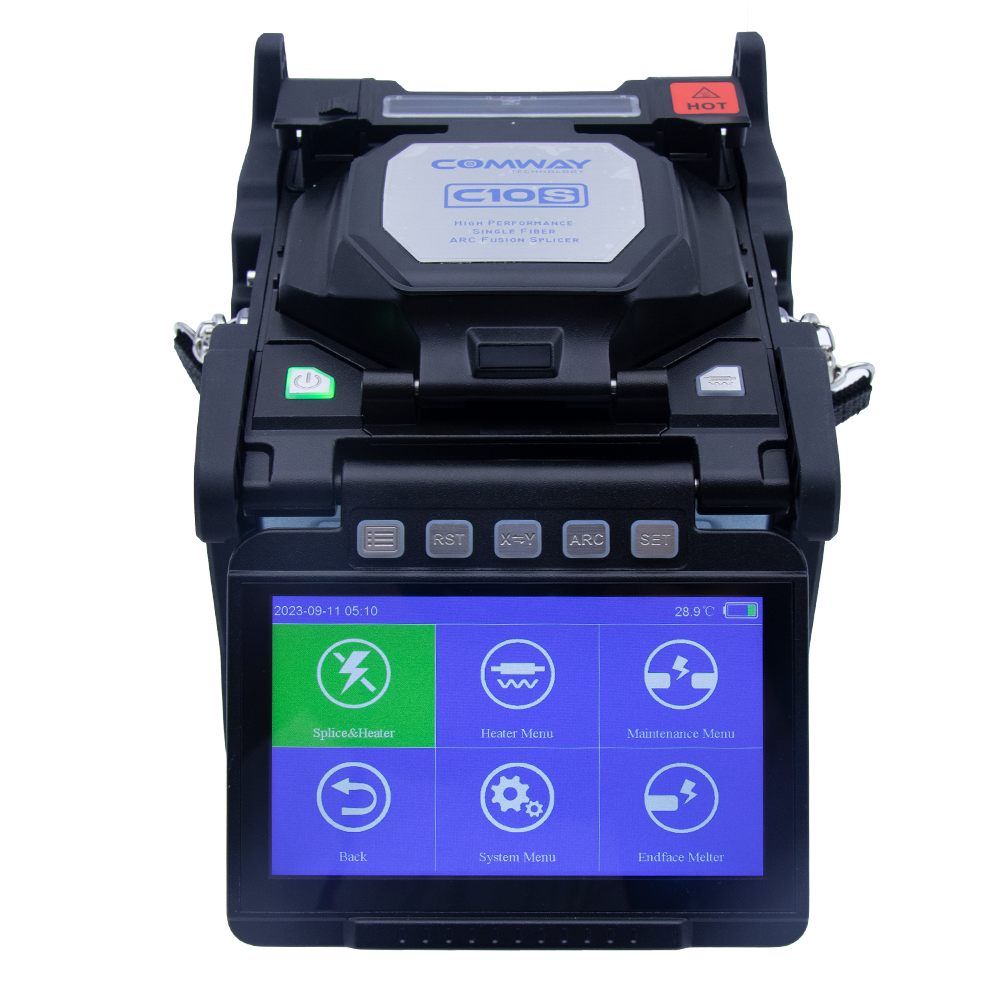

5-inch touch screen

Specifications

Technical data for the Fusion Splicer C10S V2. Need a full datasheet or help comparing models? Contact our sales team.

Size & Weight	D170×W193×H154(mm), 1.97kg (2.51kg with battery)
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), BI(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/DS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80-150μm, coating diameter 100-3000μm
Cleavage length	250μm cladding diameter 5-16mm, over 250μm cladding diameter 16mm
Splicing programs	Max. 200
Splicing time	5 sec. (SM Fast) program, 10 sec. (SM G652) program
Heating programs	Max. 30
Heating time	Adjustable, 8 sec. typical
Splice protector	10-60mm
Splice image capture	Max. 600
Splice data storage	Max. 20000
Splice loss	SM: 0.01dB, MM: 0.01dB, DS: 0.02dB, NZ/DS: 0.02dB, BI: 0.02dB
Return loss	>60dB
Loss estimation	Provided
Operation condition	Altitude 0~5000m, humidity 0~95%, temperature -10~+50°C, wind velocity up to 15m/s
Storage condition	Humidity 0~95%, temperature -40~+80°C (battery -20~+40°C)
Tension	1.96~2.25N
Screen	5 inch touch screen

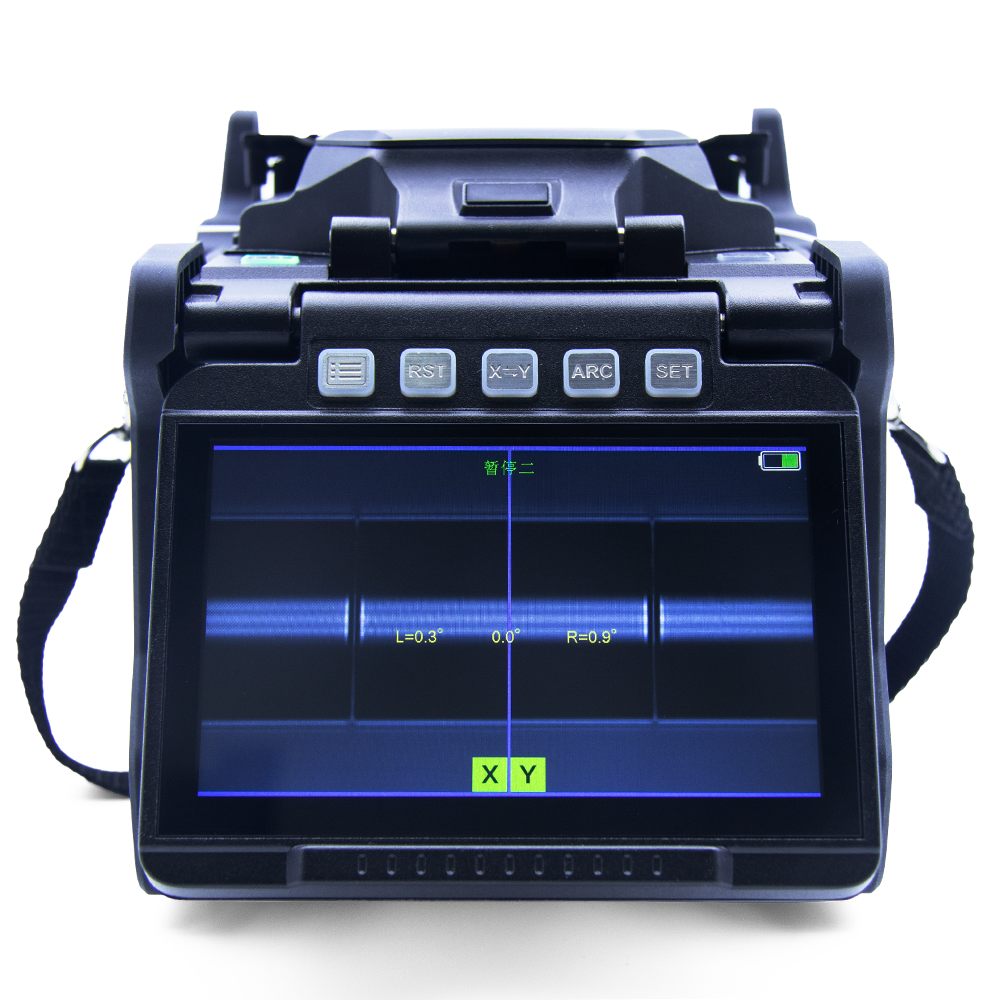

Fiber magnification	320x for both X&Y dual axis view, 750x for X or Y single axis view (zoom up)
Port	High speed USB
Electrode life	5000 ARC discharges
Power supply	AC100-240V, 50/60Hz

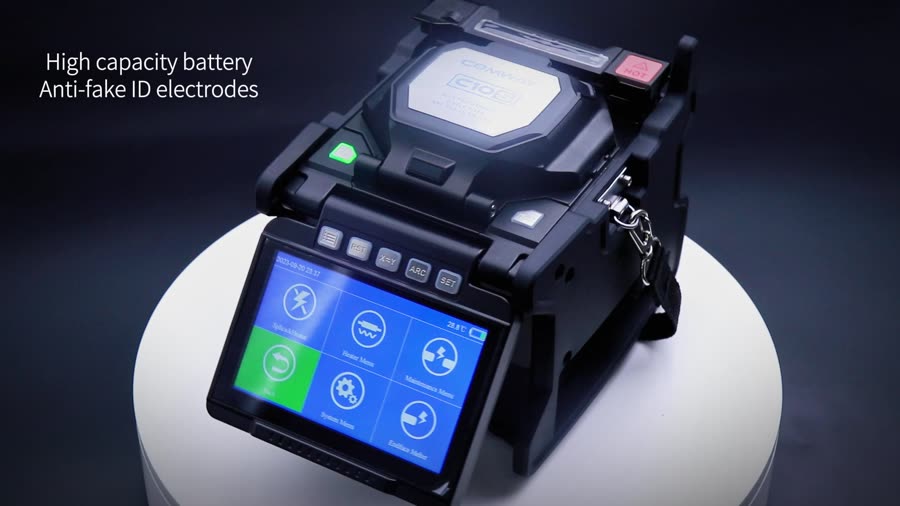

Battery parameters	8400mAh high capacity battery, more than 500 times splicing and heating
