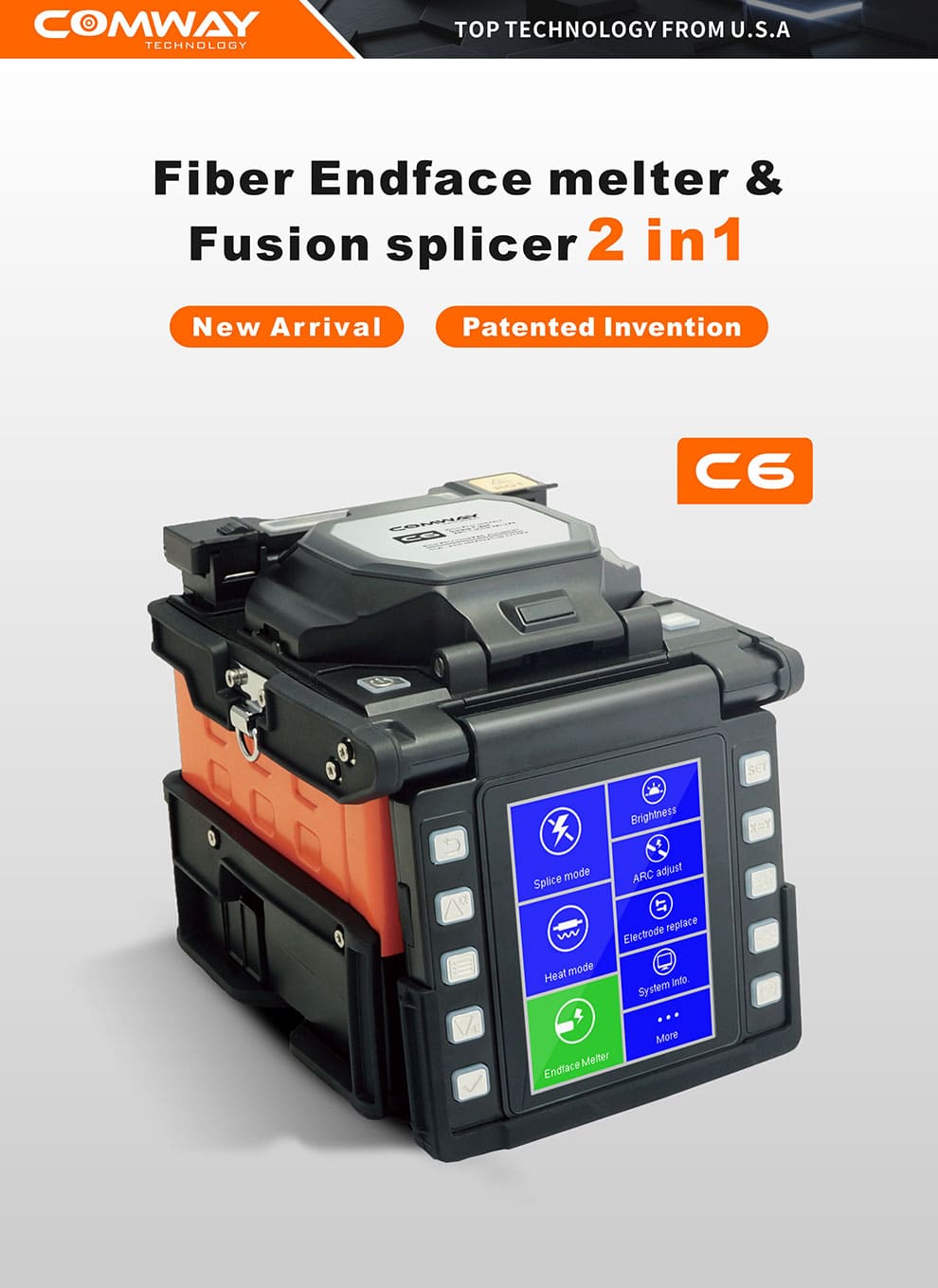

Fusion Splicer C6
The C6 combines a fiber endface melter with a standard FTTx fusion splicer built around high-precision PAS alignment. Adjustable heating and a high-capacity battery make it a dependable daily worker for drop cable and distribution splicing.
- High-precision PAS alignment
- Fiber endface melter function
- Stores up to 20,000 splice results
- High-capacity 5,600 mAh battery for full-day field work
Specifications
Technical data for the Fusion Splicer C6. Need a full datasheet or help comparing models? Contact our sales team.
| Fiber alignment | High precision PAS alignment |
|---|---|
| Fiber type | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657) |
| Splice mode | Single fiber |
| Cleave length | 8-16 mm (250 um cladding diameter), 16 mm (over 250 um cladding diameter) |
| Splicing time | 6 s (SM Fast program), 10 s (SM G652 program) |
| Heating time | Adjustable, 12 s typical |
| Splice data storage | Max. 20,000 records |
| Battery | 5,600 mAh high-capacity battery, more than 250 splicing and heating cycles |
