CD8000 Pipeline/Cable Detector

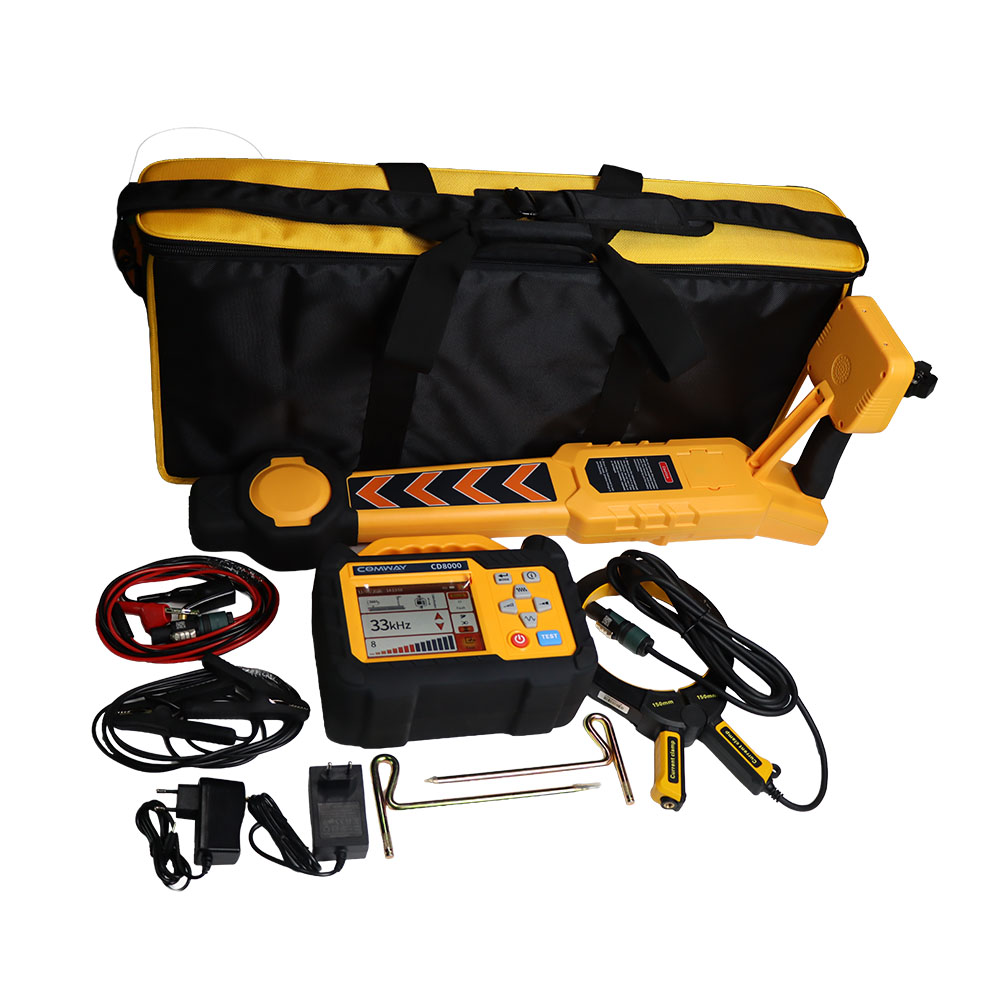

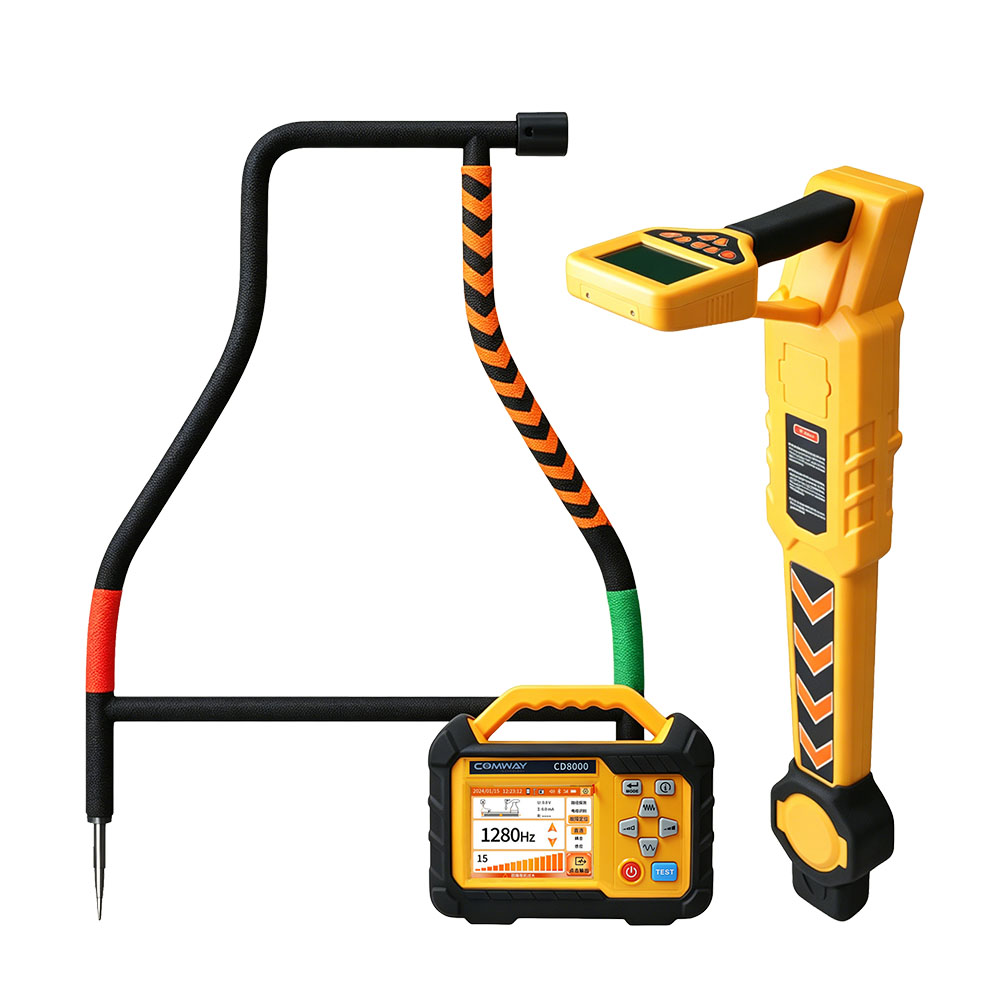

The CD8000 is a multifunctional cable path identification detector for pipeline route detection, cable identification and pipeline ground fault location. It supports trenchless path detection of metal pipelines and underground cables, pipeline surveying and depth measurement, using multiple filter techniques for strong anti-interference performance. The system consists of a transmitter, receiver, transmit clamp and connecting test leads, with optional flexible clamp, A-frame, stethoscope and tracer probe accessories. It is an essential instrument for pipeline maintenance units, municipal planning, power supply and construction departments.
- Four detection modes: classic positioning, full-screen signal, signal curve and tracer probe
- 18 active detection frequencies plus 50/60 Hz passive power-frequency detection
- Current direction calibration eliminates adjacent-line interference and tracking errors
- Built-in sweep test selects a clean frequency to avoid co-channel interference
- All-digital high-precision sampling with ultra-narrow reception passband
- 4.3-inch color touchscreen receiver and 5.6-inch capacitive touch transmitter display
- 15 W max transmitter output with 15-level adjustment and automatic impedance matching
- Cable identification of up to 10 pre-marked cables, live or de-energized
Specifications
Technical data for the CD8000 Pipeline/Cable Detector. Need a full datasheet or help comparing models? Contact our sales team.
| Functions | Pipeline detection (route tracing, direction, depth & current measurement), cable identification, tracer probe location, ground fault location |
|---|---|
| Receiver power source | 7.4V DC 6400mAh rechargeable lithium battery |
| Active frequencies | 128Hz, 512Hz, 577Hz, 640Hz, 1024Hz, 1280Hz, 2.56kHz, 3.20kHz, 4.09kHz, 8.19kHz, 9.80kHz, 10kHz, 33kHz, 66kHz, 82kHz, 83.1kHz, 133kHz, 201kHz |
| Passive frequencies | 50Hz, 60Hz power frequency |
| Detection modes | Wide peak, narrow peak, null (sound valley) |
| Display modes | Classic positioning, full-screen signal, signal curve, tracer probe |
| Detection range (direct connection) | 0-20 km cable length |
| Detection range (clamp coupling) | 0-10 km cable length |
| Detection range (induction) | Cables buried less than 2 m deep |
| Positioning accuracy | ±5% (depth 0-3 m); -15% (depth 3-20 m) |

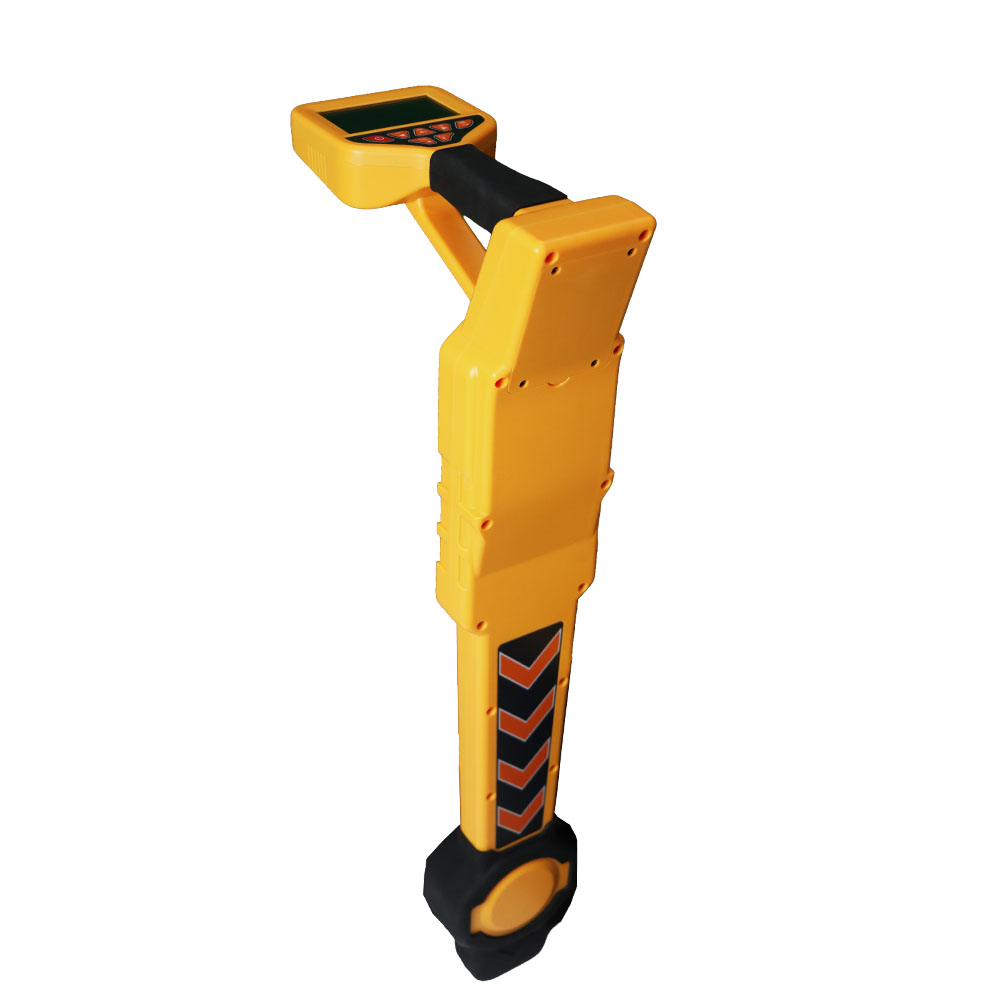

| Receiver display | 4.3-inch color LCD with touchscreen |
| Receiver size | About 311mm x 133mm x 750mm |
| Receiver weight | 2.0 kg |

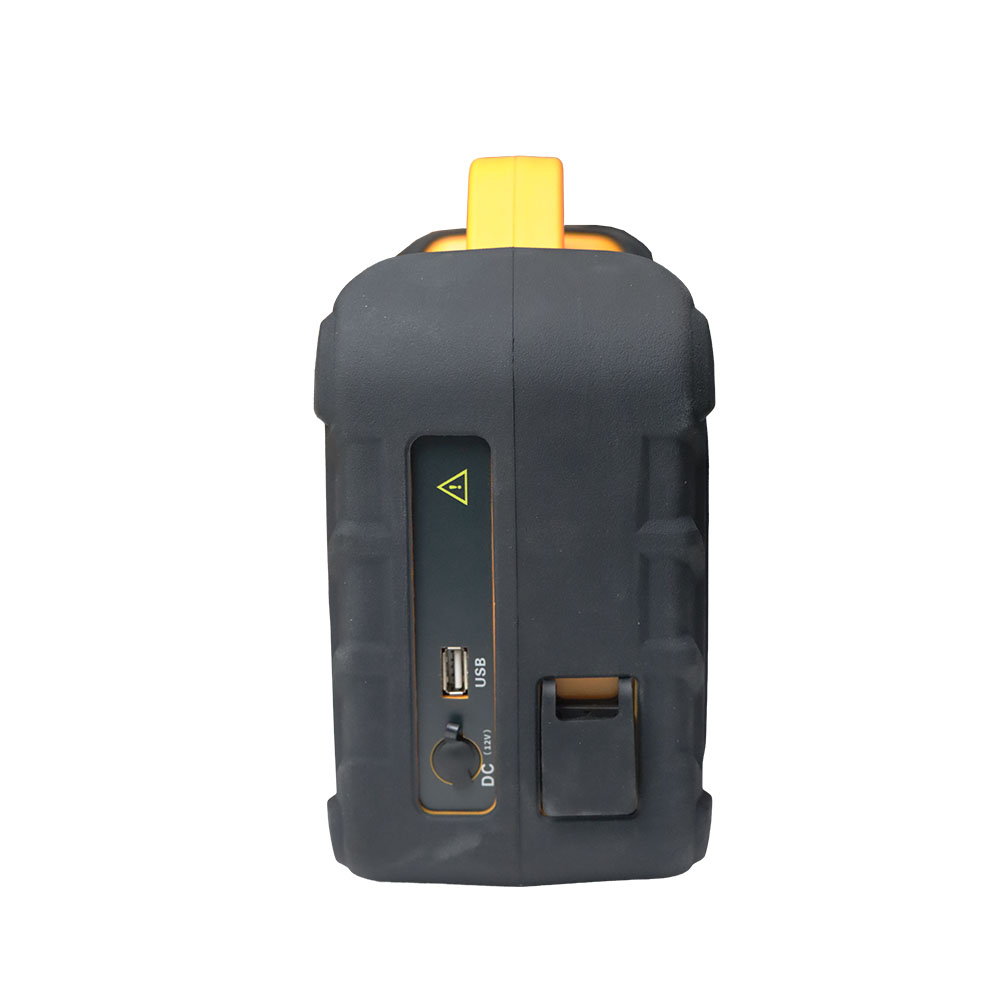

| Receiver interfaces | USB (firmware upgrade / phone charging), DC charging, Type-C charging, flexible clamp socket |
| Transmitter power source | 11.1V DC 12800mAh rechargeable lithium battery |
| Transmitter output modes | Direct output, induction, clamp coupling |
| Output power | 15W max, 15 levels adjustable, automatic impedance matching |
| Max output voltage | 150Vpp (direct connection) |
| Circuit protection | Overload and short circuit protection |

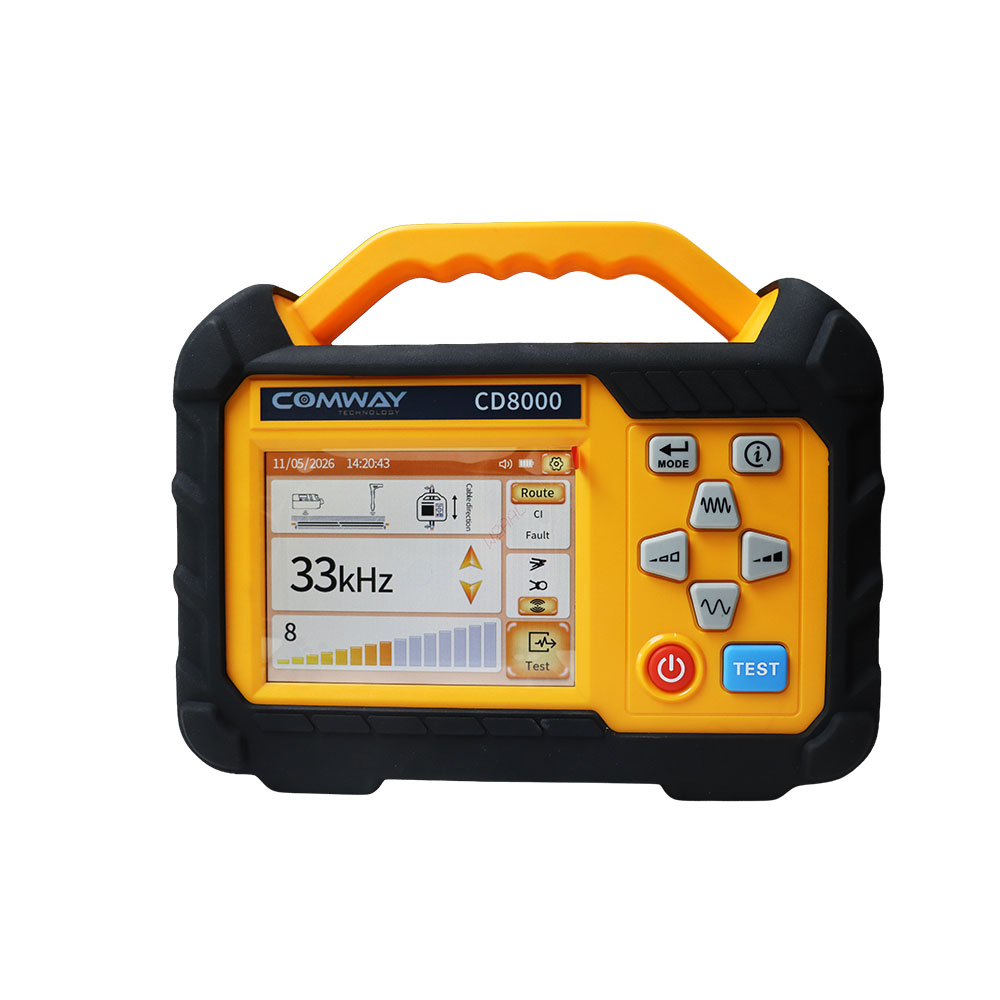

| Transmitter display | 5.6-inch capacitive touch LCD |
| Transmitter size | About 259mm x 211mm x 105mm |
| Transmitter weight | 3.0 kg (transmitter); 1.12 kg (launch clamp) |
| Launch clamp | Inner diameter 150mm, 3m lead wire |
| Working conditions | -10°C to 40°C, below 80%RH |
| Safety compliance | IEC 61010-1 CAT III 600V, IEC61010-031, IEC61326 |
