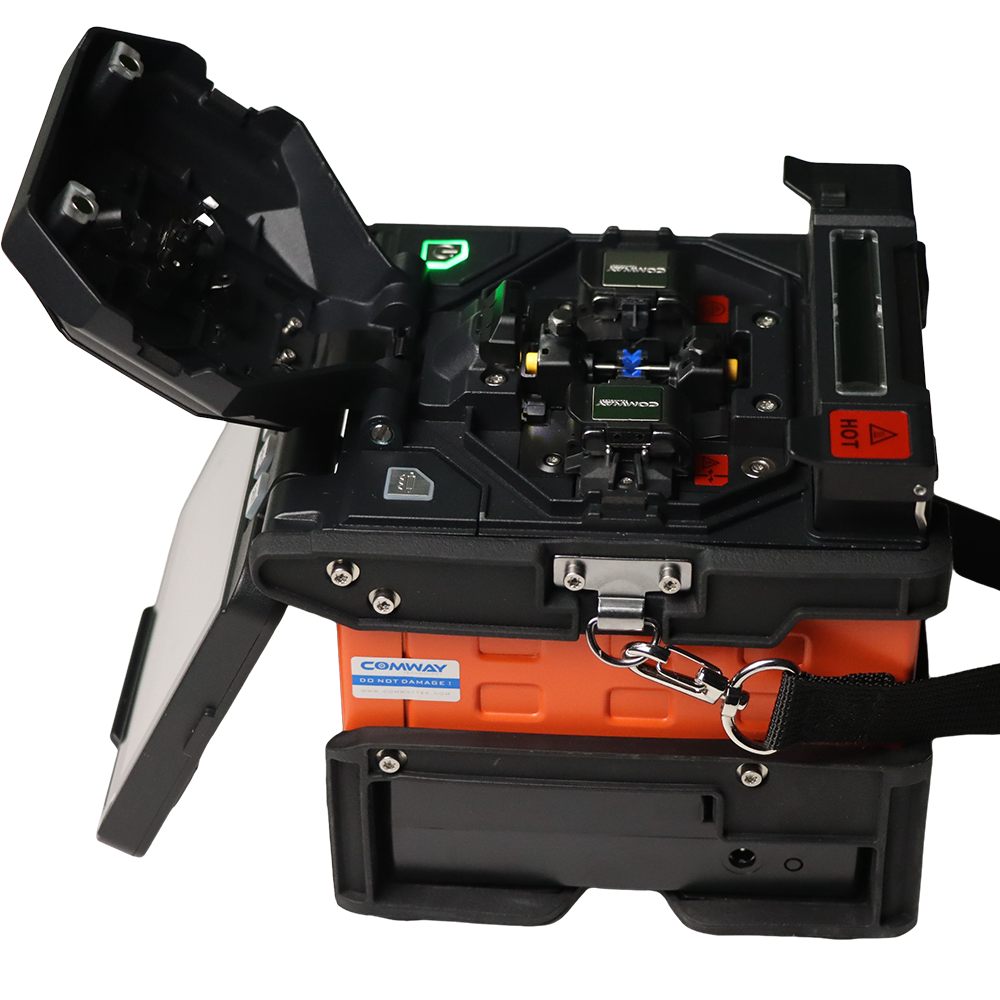

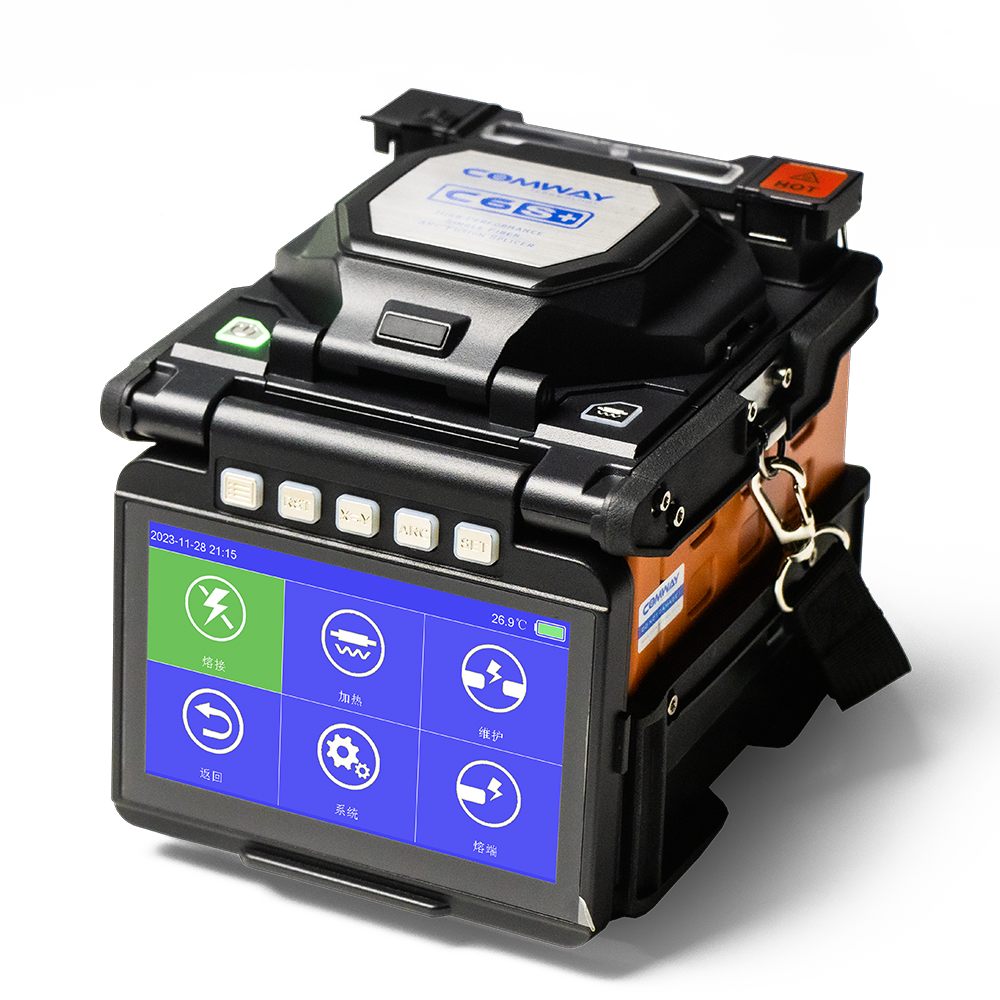

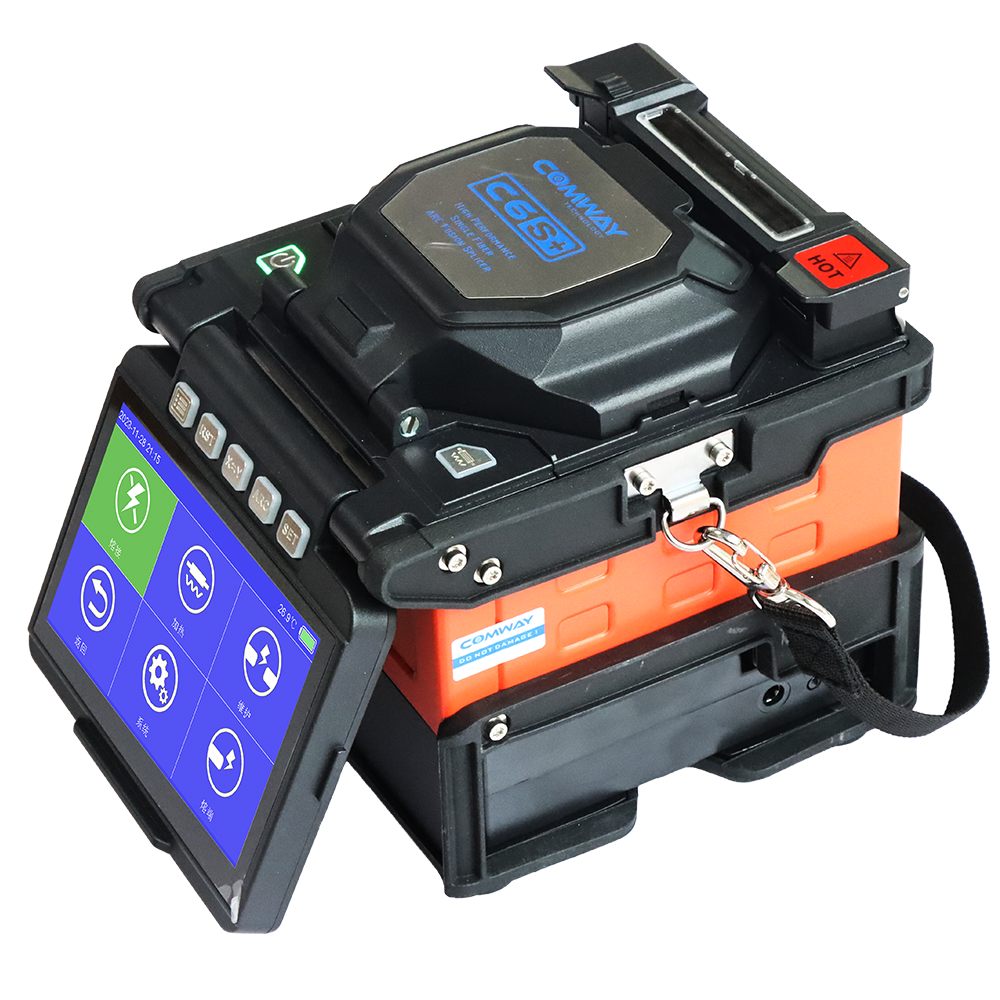

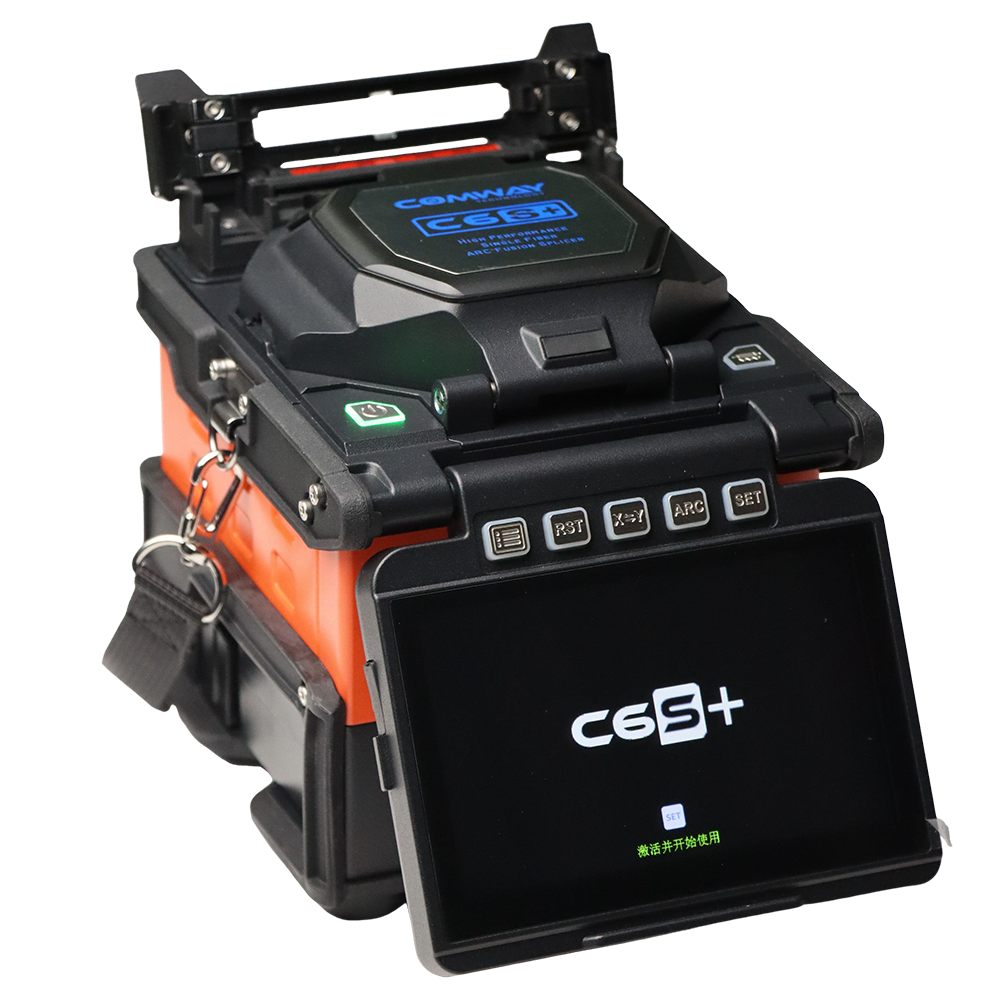

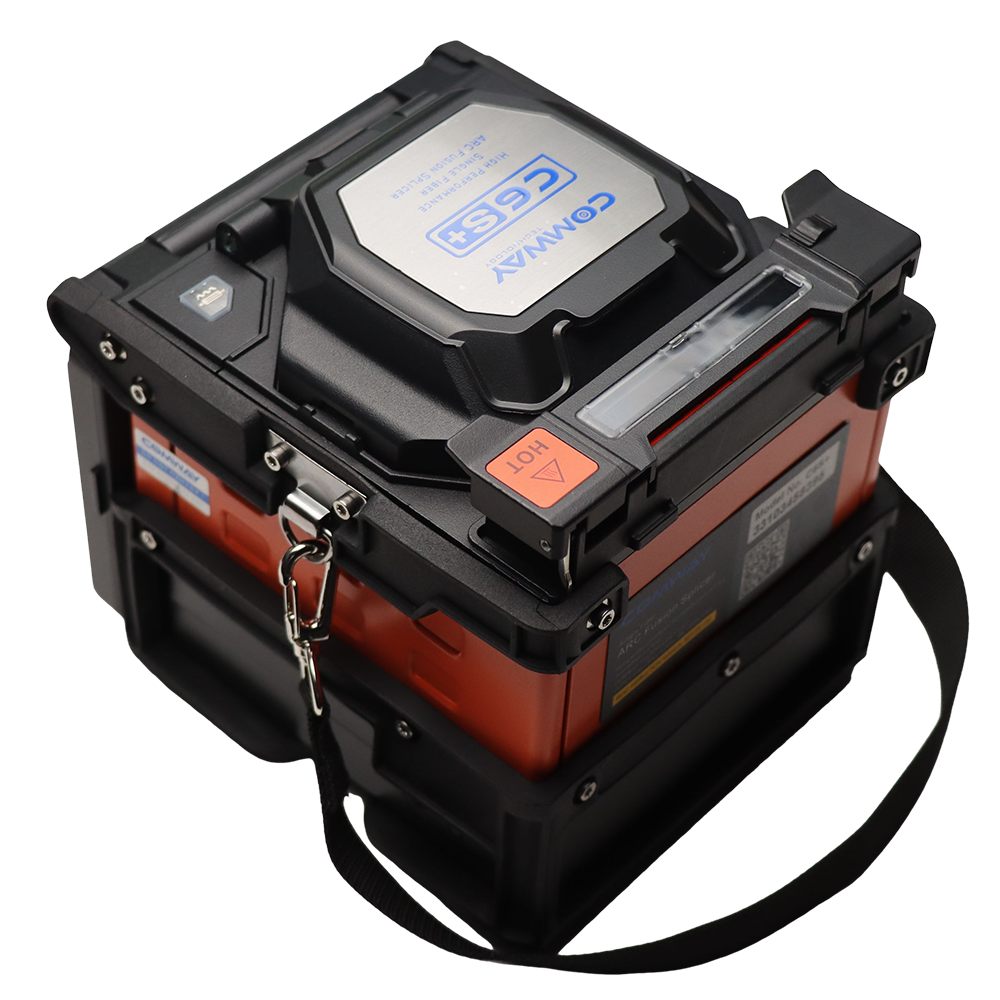

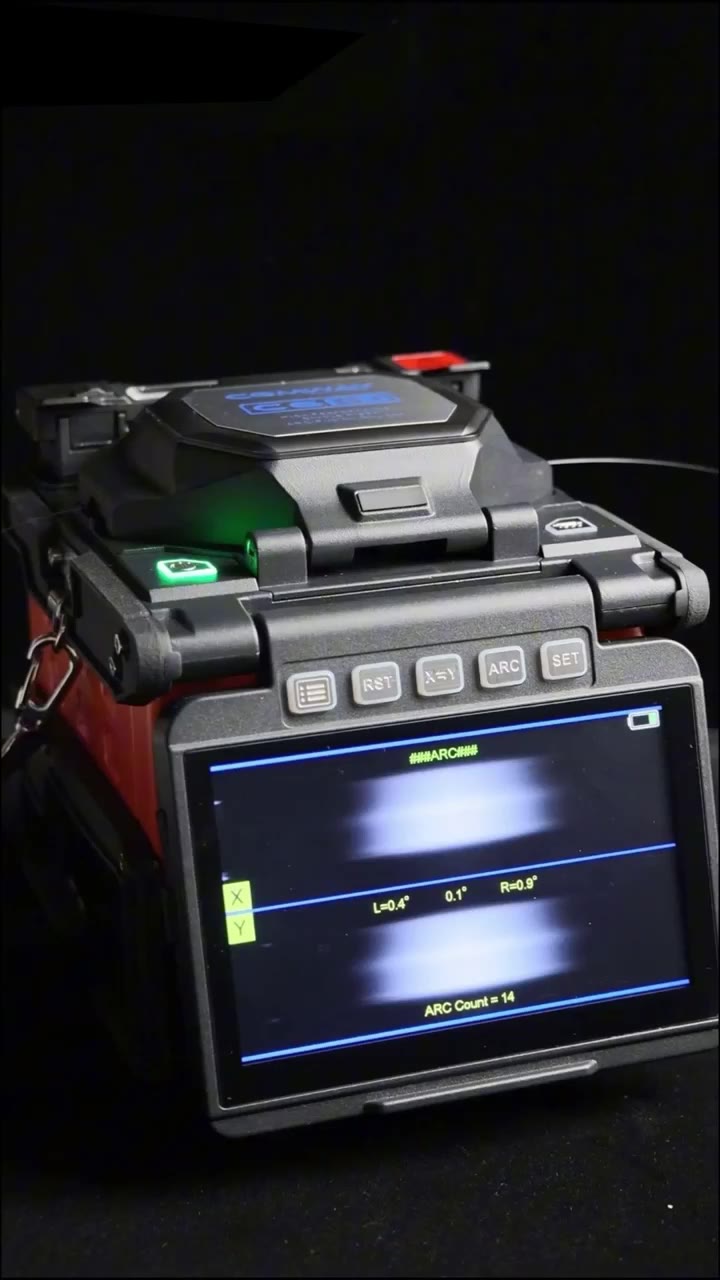

Fusion Splicer C6S+
The C6S+ pairs proven core alignment splicing with an all-new 5-inch touch screen. The wider field of view and clearer visuals make working in trenches and splice closures easier, while one-tap operation keeps the workflow smooth for both new and experienced technicians.
- 2 in 1 fiber endface melter & fusion splicer
- Innovation patent with integrated GPU
- 5-inch touch screen
- PAS alignment
- 5 sec. splicing, 8 sec. heating
- 750x single axis view
- Remote locker anti-theft
- GPS option
Specifications
Technical data for the Fusion Splicer C6S+. Need a full datasheet or help comparing models? Contact our sales team.
| Size & Weight | D156×W135×H148(mm), 1.82kg (2.22kg with battery) |
|---|---|
| Fiber alignment | High precision PAS alignment |
| Fiber type | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/DS(ITU-T G.655), BI(ITU-T G.657) |
| Splice mode | Single fiber |
| Fiber diameter | Cladding diameter 80-150μm, coating 100-3000μm |
| Cleavage length | 250μm cladding diameter 8-16mm, over 250μm cladding diameter 16mm |
| Splicing programs | Max. 200 |
| Splicing time | 5 sec. (SM Fast) program, 8 sec. (SM G652) program |
| Heating programs | Max. 30 |
| Heating time | Adjustable, 8 sec. with micro sleeves, 12 sec. with slim 60mm and 40mm sleeves |
| Splice protector | 10-60mm |
| Splice image capture | Max. 800 |
| Splice data storage | Max. 20000 |
| Splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/DS: 0.04dB, BI: 0.02dB |
| Return loss | >60dB |
| Loss estimation | Provided |
| Operation condition | Altitude 0~5000m, humidity 0~95%, temperature -10~+50°C, wind velocity up to 15m/s |
| Storage condition | Humidity 0~95%, temperature -40~+80°C (battery -20~+40°C) |
| Tension | 1.96~2.25N |
| Screen | 5 inch high-light color touch screen |
| Fiber magnification | 300x for X&Y dual axis view, 750x for X or Y single axis view (zoom up) |
| Port | High speed USB |
| Electrode life | 5000 ARC discharges |
| Power supply | AC100-240V 50/60Hz |
| Battery parameters | 5600mAh high capacity battery, more than 350 times splicing and heating |
| Tracking | GPS positioning and tracking system through inbuilt SIM card (option) |
